Combination Tillage

Broadacre

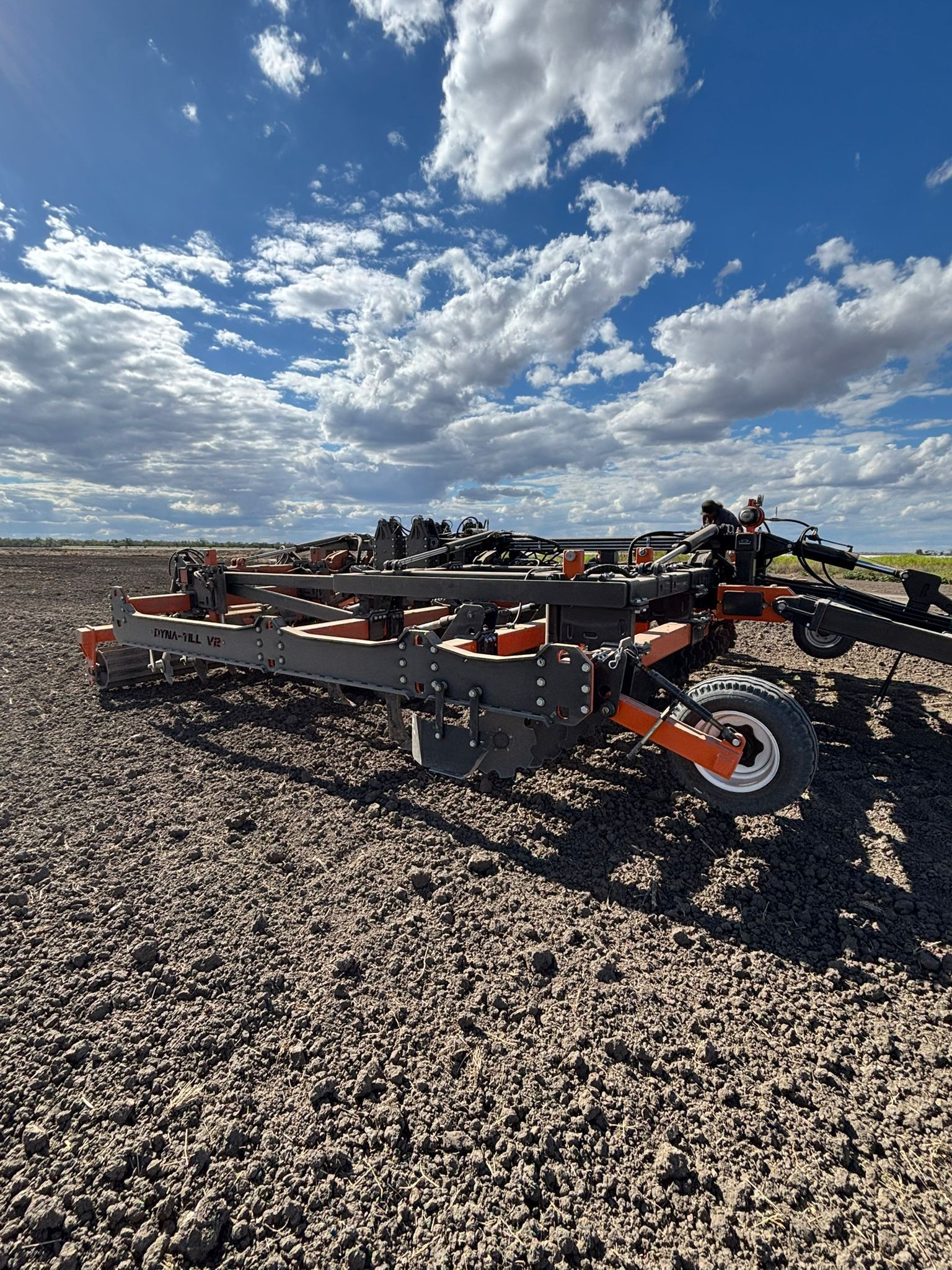

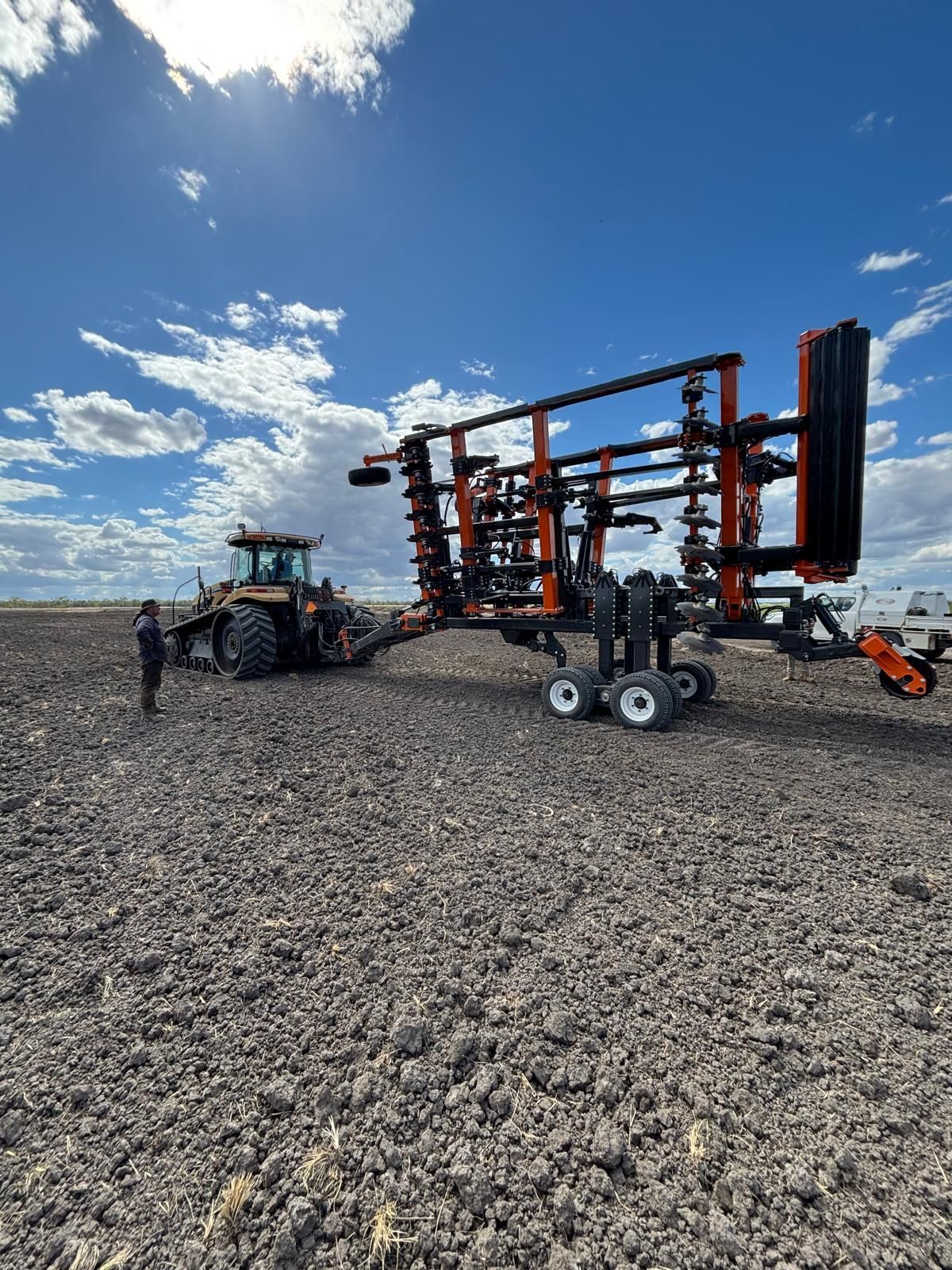

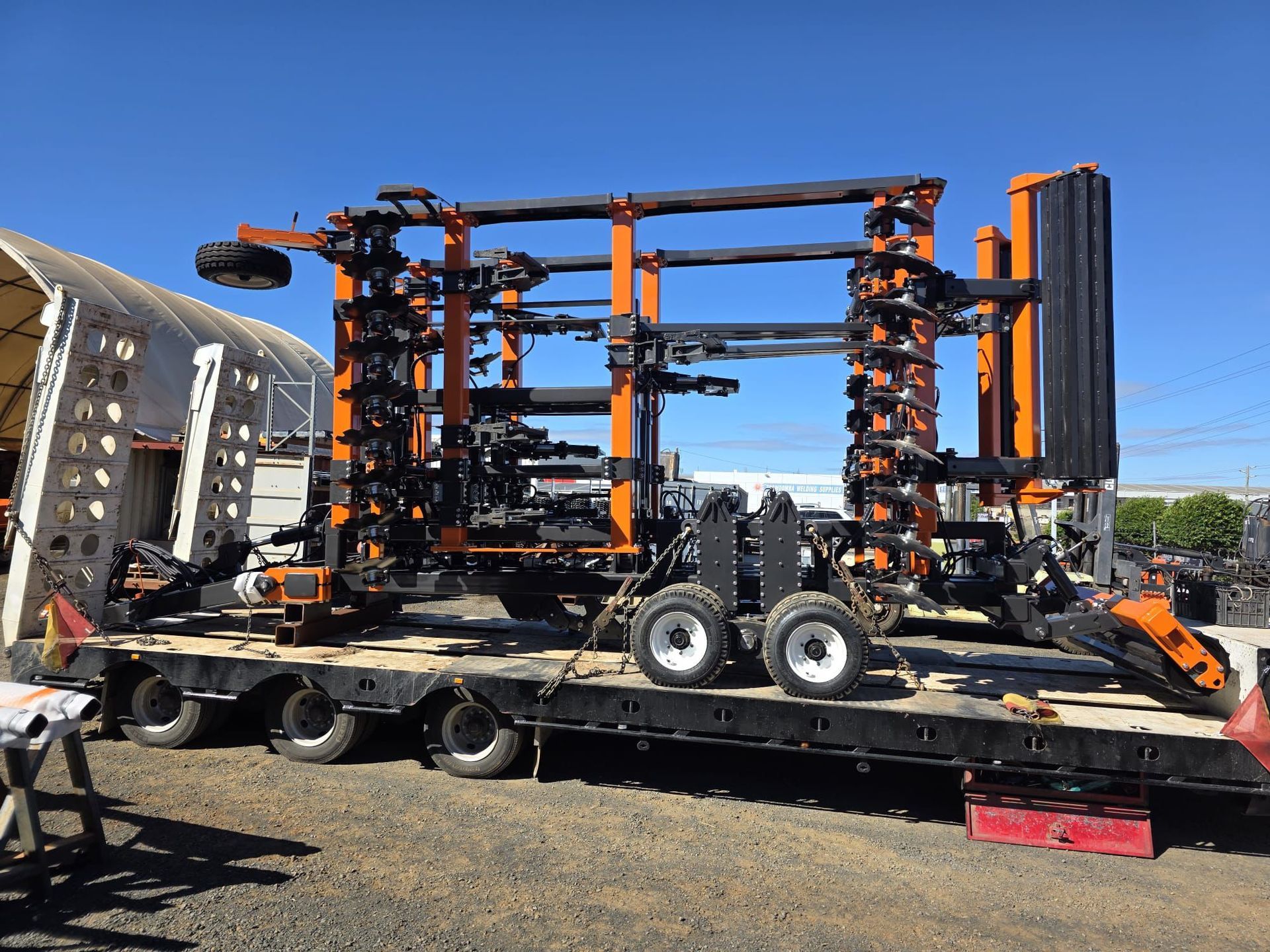

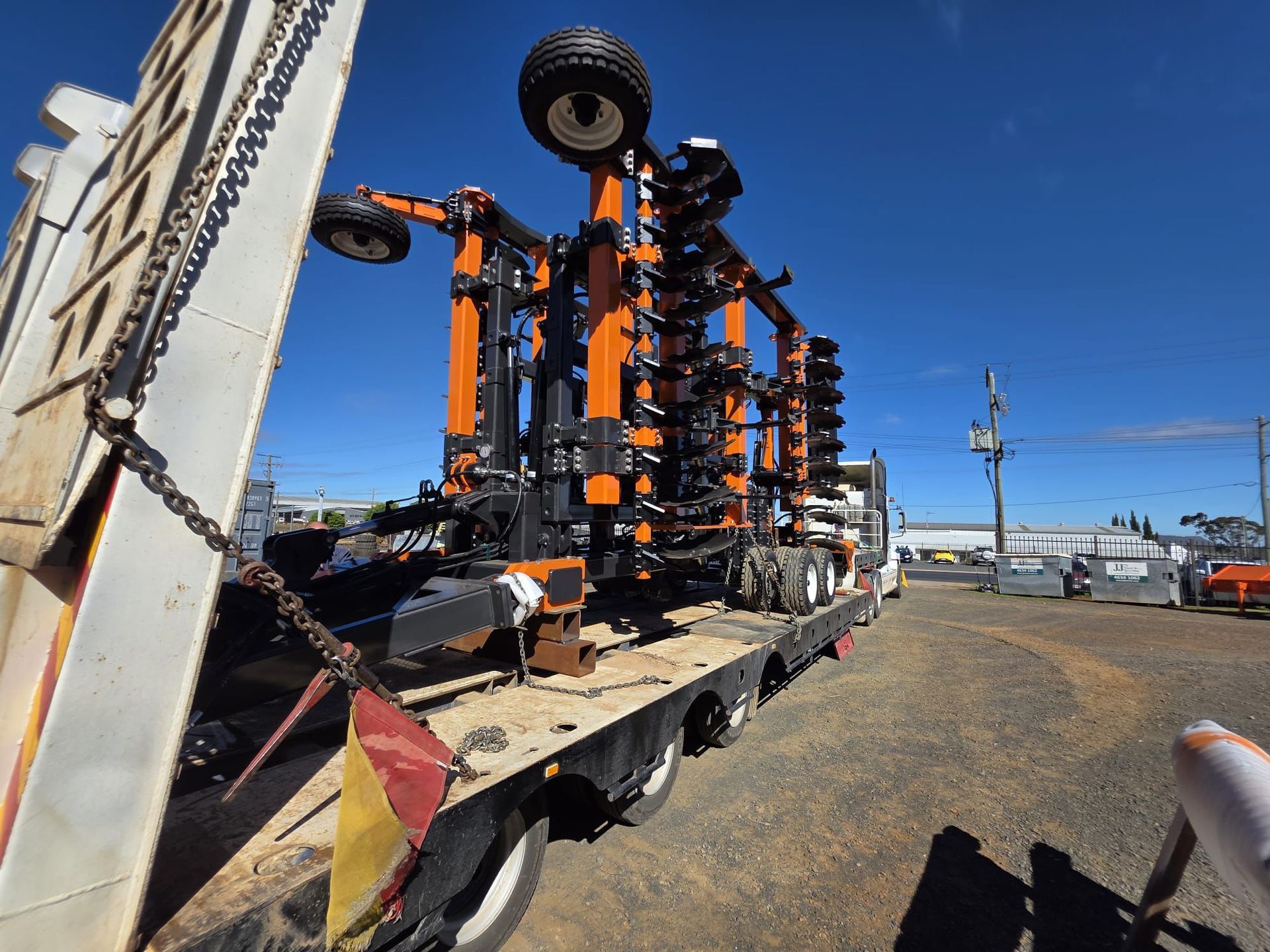

TTQ Dyna-Till V2

The Dyna-Till V2 is the second iteration of the already proven Dyna-Till Concept. It combines our proven shank and roller systems with high quality discs to produce an excellent, fast, one-pass solution.


We’ve retained the TTQ tradition for flexibility but have simplified the layout to make sure the machine spends more time working for you.

As you’d expect, it is built “TTQ Tough” so you know you can rely on it.


Dyna-Till V2 Upgrades

  • Proven MTS hydraulic breakout tynes with 2 1/4 inch cylinders
  • Hydraulically adjustable front and rear disc gangs
  • Robust three drum roller system leaving an even finish
  • Ultra heavy duty frame constructed using TTQ's proven design principles
  • Completely redesigned wheel system with built in fail safes and widely available tyre and rims


Dynamic Tillage Benefits:

  • A true one pass primary and secondary tillage machine
  • Faster in field operations
  • Deep Ripping, Seed Bed Preparation, Weed Kill and Fertiliser/Organic Matter Incorporation


TTQ Dyna-Till vs The Rest:

  • ‘TTQ tough’ frame and parts
  • Fewer moving/wearing parts
  • Better Hp. Efficiency
  • True ripping capability
  • Semi-parabolic shanks with industry leading breakout
  • Greater adjustability
  • Heaviest frame and roller in the field
  • Customizable configurations

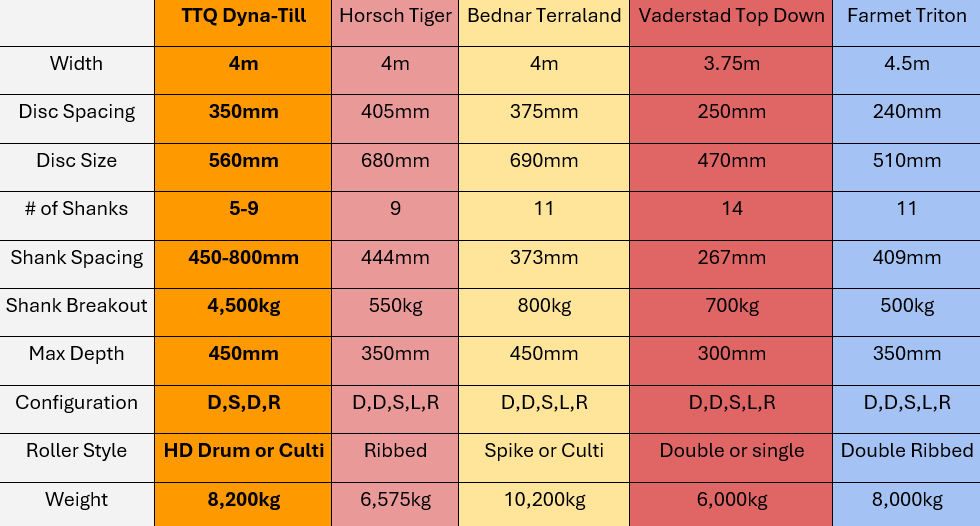

 4m Combination Tillage Comparison

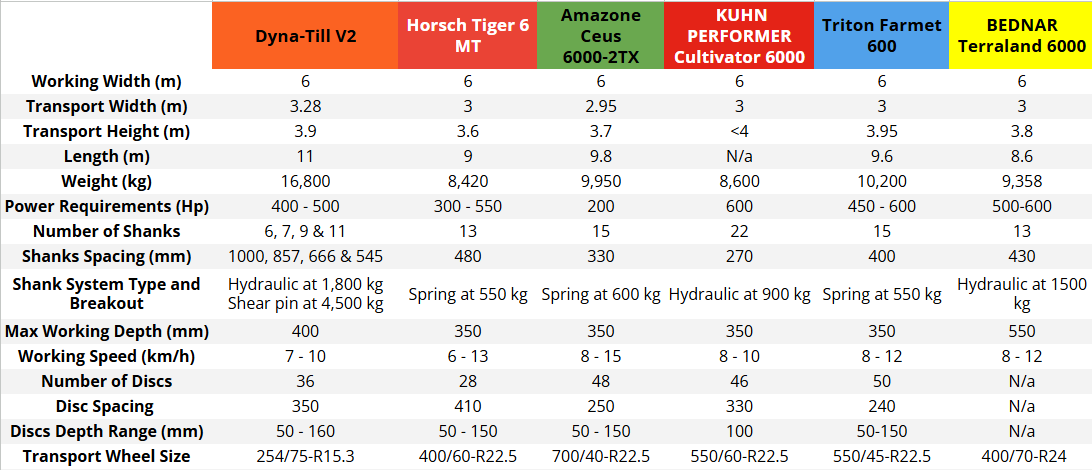

 6m Combination Tillage Comparison

Configuration Key:

D= Disc                S= Shank                              L= Leveling Disc                                 R= Roller
